6.3

Display

The Display group allows for the displaying of team declarations, competitor lists, event results, match position, completed and remaining events. Some of the displays are printed automatically via the prompters.


6.3.1

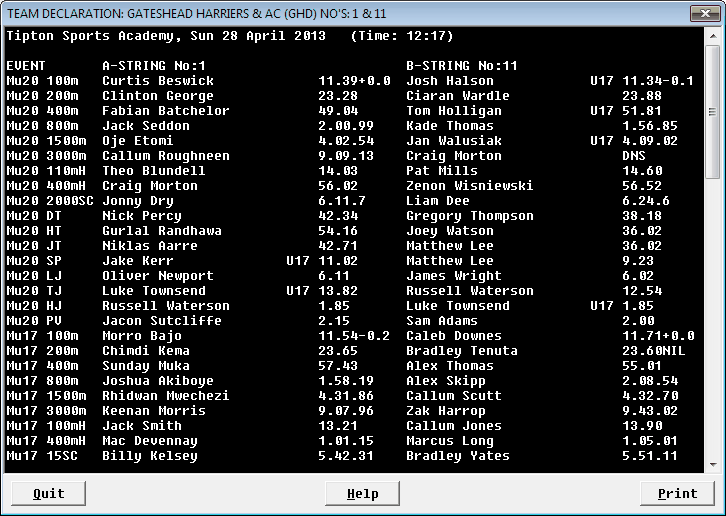

Team Declaration

The Team Declaration item presents a menu of the Team Declared. Selecting any team from the menu will display the declaration. If the meeting organisers do not have any team declaration sheets for team managers, this item can be used to print a blank declaration or print a tidier copy using the F8 key. The date and time are printed to show which of potentially several printed declarations is the most recent.

E.G.


See: 6.4.5, 6.6.4, Appendix B4

6.3.2

Start Lists

The operator can display the competitors declared for any event by selecting this item and then the desired event from the Event menu. The list displayed is exactly the same as that printed automatically by the List Prompter. This feature may be of use if the operator/announcer wishes to read directly from the screen or the List Prompter has been turned off. Alternatively, this display box can be used to reprint any list which may have been updated as the result of any changes after the normal printout from the List Prompter.


E.G. Lane draw for the 200M when a correct lane draw exists.

E.G. List of 200M competitors when the lane draw does not exist.
See: 3.3, 4.1

6.3.2

Event Result

The operator can display an event result for any event by selecting this item and then the desired event from the subsequent EVENT menu. The result displayed is exactly the same as that printed automatically by the result prompter and printed on the final results and may be of use if the result prompter has been turned off.

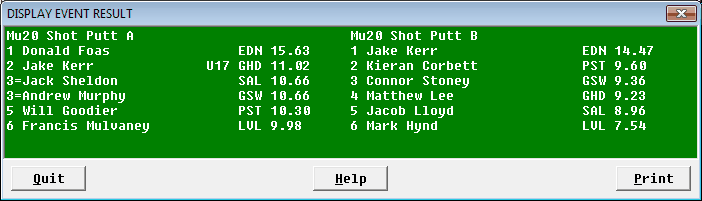

E.G. Typical on screen display for an event result.

See: 3.3, 4.3

6.3.3

Match Position

This item allows the operator to display the current match points and positions at any time. The display is exactly the same as that printed automatically by the Result Prompter after entry of each event result. The number of completed events will be shown until all events are complete. The number of sections in the display will vary depending on the round, the number of events entered and any ties.

For Cup and promotion matches where a points tie exists additional columns will show how many first, second etc places each team has achieved. This is intended to assist in resolving the tie.

This display may be of use if the operator/announcer wishes to read directly from the screen or the Result Prompter has been turned off.

6.3.4.A

League Match Position

For round 1 and when previous round results can not be found the display will consist of two columned sections titled, THIS MATCH and LEAGUE STANDINGS. Where all previous round results can be found a third columned section, PRIOR STANDINGS, will be added when 5 or less event results remain to be entered. This is also true before any event results have been entered thus allowing the operator to ensure all abbreviation are the same as previous round(s).

E.G. A typical display with 2.5 event remaining.

See: 6.1.5, 6.2.8, 4.3.5, 4.3.6

6.3.4.B

Cup Match Position

The display will show all the points for all teams.

E.G. A typical KM display
See: 4.3.5, 4.3.6

6.3.5

Completed/Remaining Events

Displays the number of completed and remaining events and the current state of results for all events.

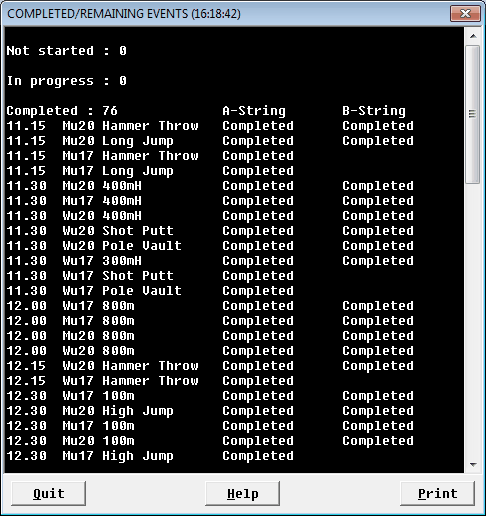

E.G. A typical display of completed events,

6.3.6

Athlete Totals

This will display the total number of athletes declared for all events with a breakdown of A and B strings where appropriate.

E.G.

6.3.7

Non Scoring Results

This item presents a menu which allows for selection and subsequent display of all non scoring results.

E.G. Displaying a non scoring result.
See: 6.2.6

6.3.8

Statistics

The Statistics item displays a menu of the teams in the match. Selection of a team will display a summary of the number of athletes for the team. This is broken down fully indicating the total events, points scored, maximum possible points and percentages achieved all athletes in the team. This item may be of use in identifying misspelt names, if the relays are not at the bottom of the list the team declaration contains misspelt names. The only exception to this is when a relay runner does not take part in an individual event.

E.G. Typical display for team statistics.
See: 6.1.8.1-8

6.3.9

Full Timetable

This will display the current timetable by event and time.



6.3.10

Draws

This item allows part or all of the currently selected event draws to be displayed if all the event draws have been set.


6.3.10.1

Track Draw

This item will display the lane draws for all the track events, in timetable order, if all the lane draws have been set. The list may assist the marksman/starter when athletes line up on the start line.


6.3.10.2

Field Draw

This item will display the competing order for all field events, in timetable order, if all the lane draws have been set. The list may be of use to field judges or athletes.


6.3.10.3

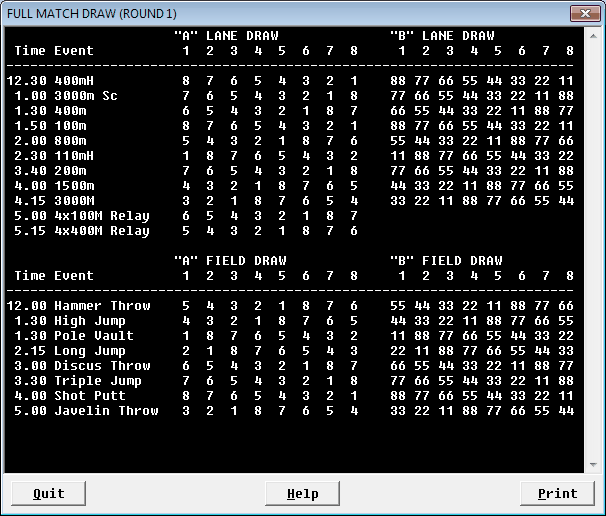

Full Match Draw

This item will display the track and field draws for all events.


6.3.11

Standards

This item displays the AAA grades, AW standards and user standards for all events.

6.3.11.1

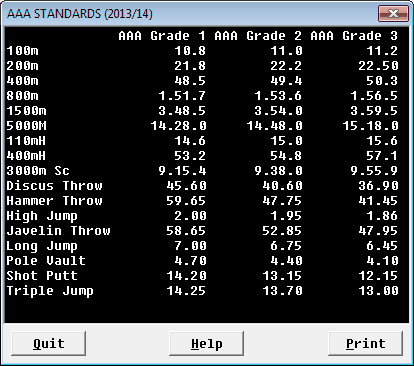

AAA Standards

This item displays the AAA grades.

6.3.11.2

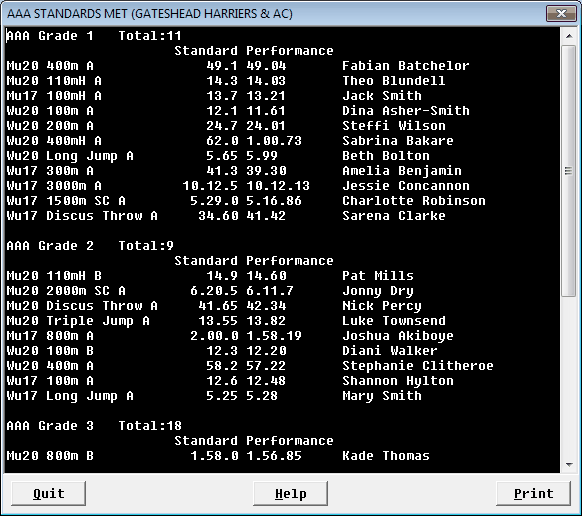

AAA Standards Met

This option allows for a team breakdown of which athletes have achieved a AAA grade.
See: 3.2, 6.5.3

6.3.11.3

User Standards

This displays all the user defined standards.

6.3.11.4

User Standards Met

This allows the user to select which standards list the current match performances are to be compared against. A brief description of the list will appear on the menu.
See: 3.2, 6.5.3

6.3.12

All Start Lists

This displays the start lists for all events.
